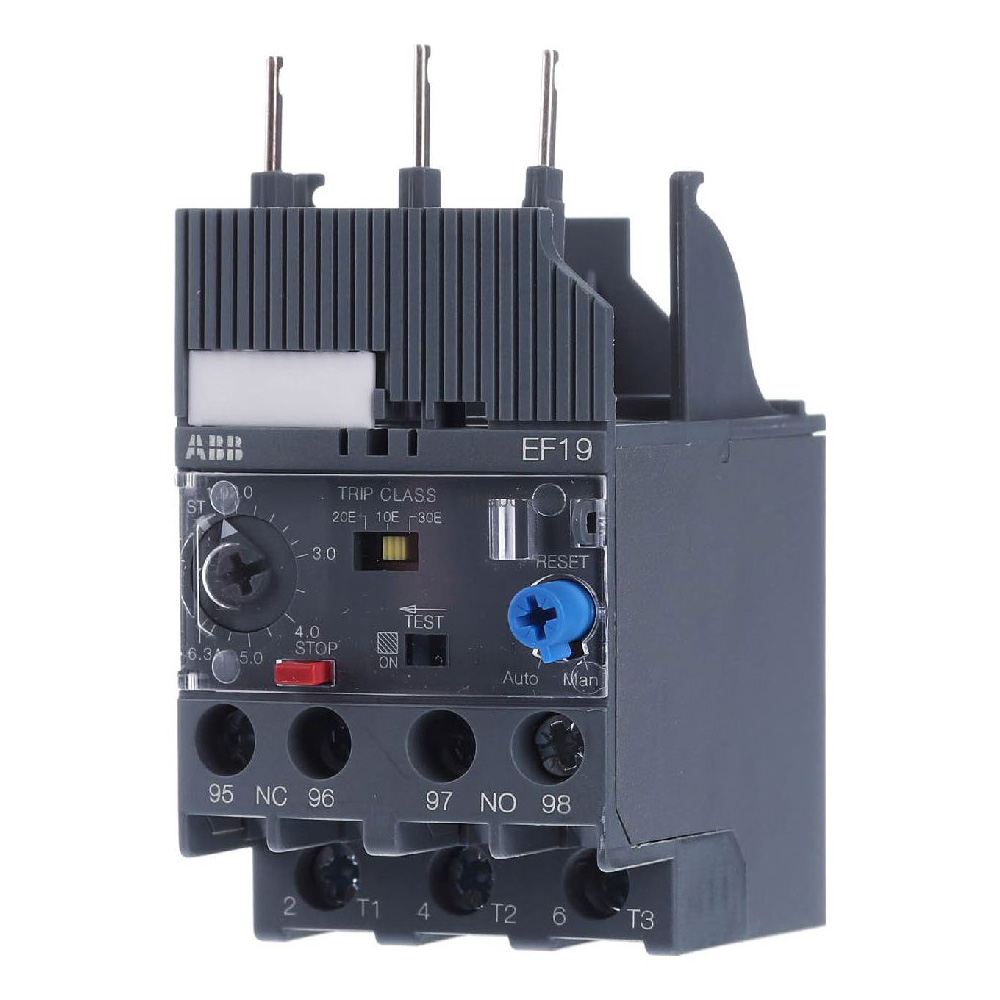

EF19

ELECTRONIC OVER LOAD RELAY EF

Manufacturer : ABB

Description

EF Series Electronic Overload Relays
The EF Series from ABB comprises advanced Electronic Overload Relays designed to provide precise and reliable protection for motors against overloads and phase failures. These relays are integral components in motor control circuits, offering enhanced performance and flexibility.


Key Features:
Selectable Trip Classes: The EF Series allows users to select from Class 10E, Class 20E, and Class 30E trip classes, accommodating various application requirements.​
Adjustable Current Settings: These relays offer adjustable current setting ranges, enabling precise matching to motor specifications and load conditions.​
Overload Protection with Phase Loss Sensitivity: The EF Series provides reliable overload protection and is sensitive to phase loss, ensuring comprehensive motor protection.​
Temperature Compensation: Designed to operate effectively in environments up to +70°C, these relays feature temperature compensation to maintain accurate protection under varying thermal conditions.​
Self-Supply Capability: The EF Series relays are self-supplied, eliminating the need for an external power source and simplifying installation.​ABB Group
Reset Options: Users can choose between automatic or manual reset functions, with options for sealing, providing flexibility in maintenance and operation.​ABB Group+1ABB Group+1
Stop and Test Function: Equipped with a stop and test function, these relays facilitate easy maintenance and testing procedures.​

Applications:
The EF Series Electronic Overload Relays are suitable for a wide range of applications, including:​
Industrial Motor Protection: Protecting motors in various industrial settings from overloads and phase failures.​
HVAC Systems: Ensuring the reliability and longevity of motors in heating, ventilation, and air conditioning systems.​
Pumping Stations: Safeguarding motors in water and sewage pumping applications.​ABB Electrification+19ABB Group+19ABB Group+19
Conveyor Systems: Providing protection for motors driving conveyor belts in manufacturing and logistics.​
Conclusion:
ABB's EF Series Electronic Overload Relays offer a robust solution for motor protection, combining advanced features with ease of integration. Their adaptability to various applications and environments makes them a reliable choice for ensuring the safe and efficient operation of motor-driven systems.​
